Bourno's How-To Build a Skelerector Page
Page 4 - Lifting Bar and its Assembly

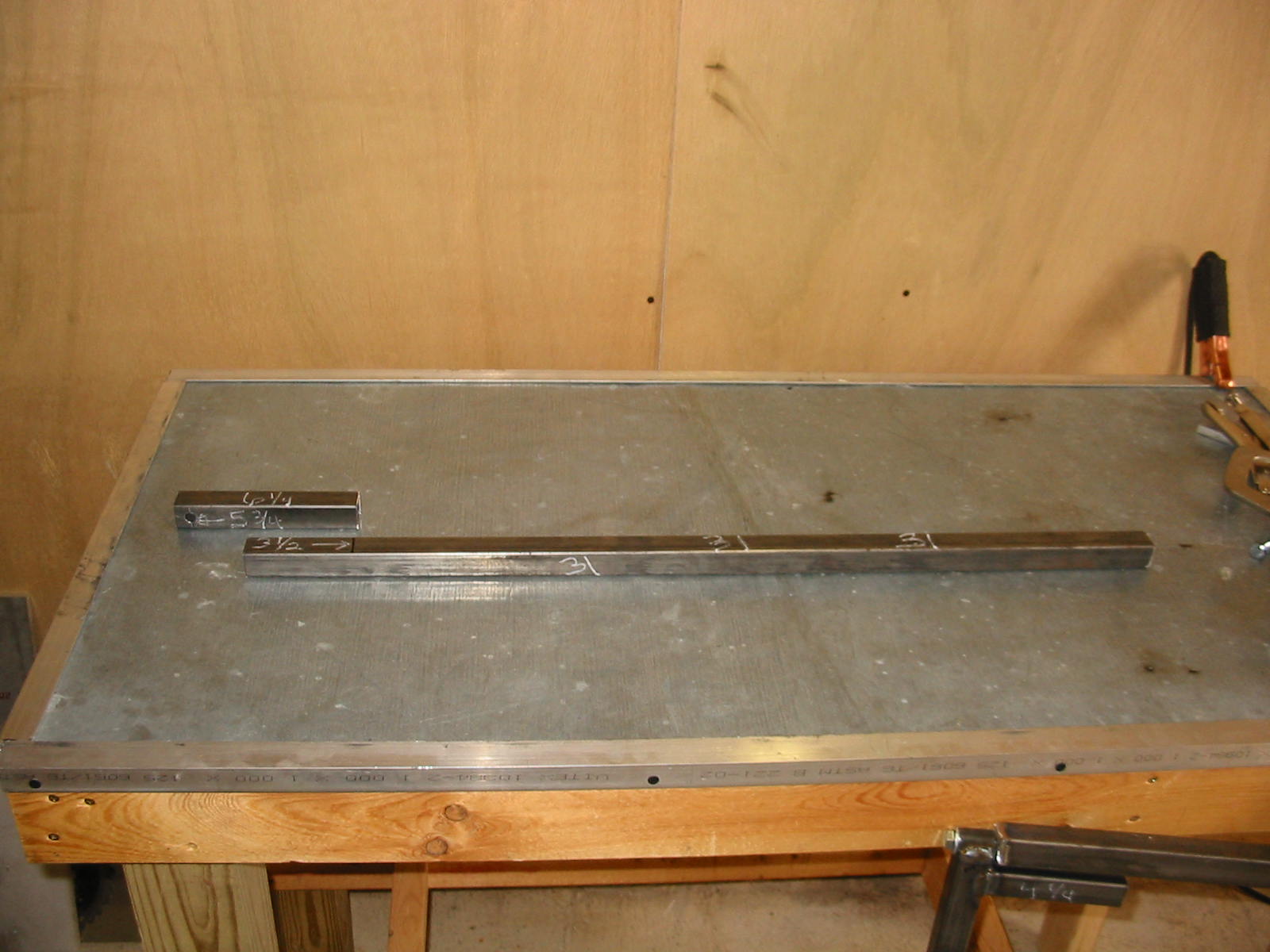

(1) Lifting bar - 31" of 1" square tubing
(1) Attachment piece - 6-1/4" of 1" square tubing with a single 3/8" hole centered
5-3/4" from one end.
Lifting Bar Assembly Pictures

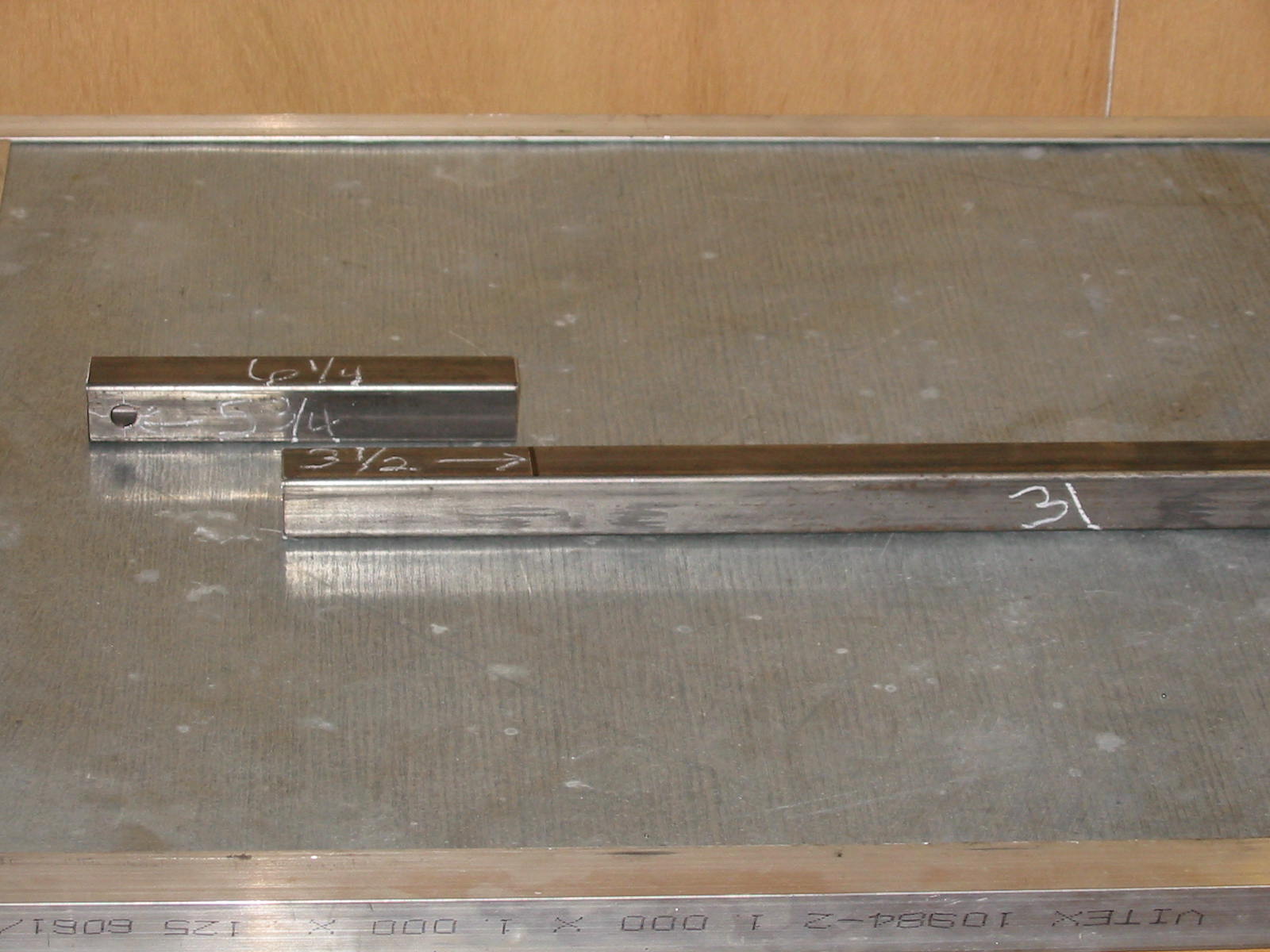

The attachment piece goes on 3-1/2" in from one
end of the 31" piece. Weld these pieces together,
but not on the end as we need to add another piece
onto this assembly.

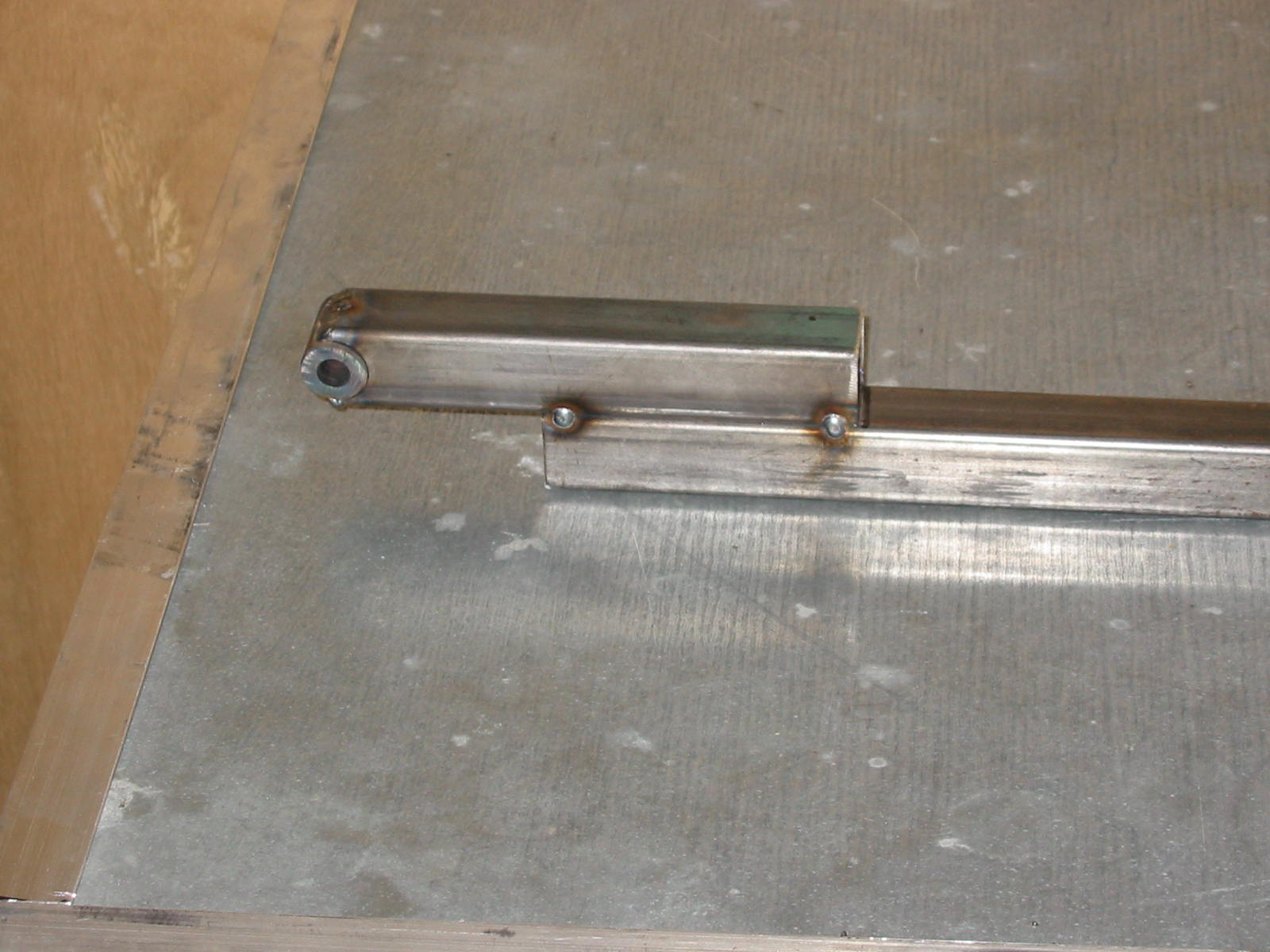

Again, you can see I substituted the 3/8" bushing
again for the standard hole.

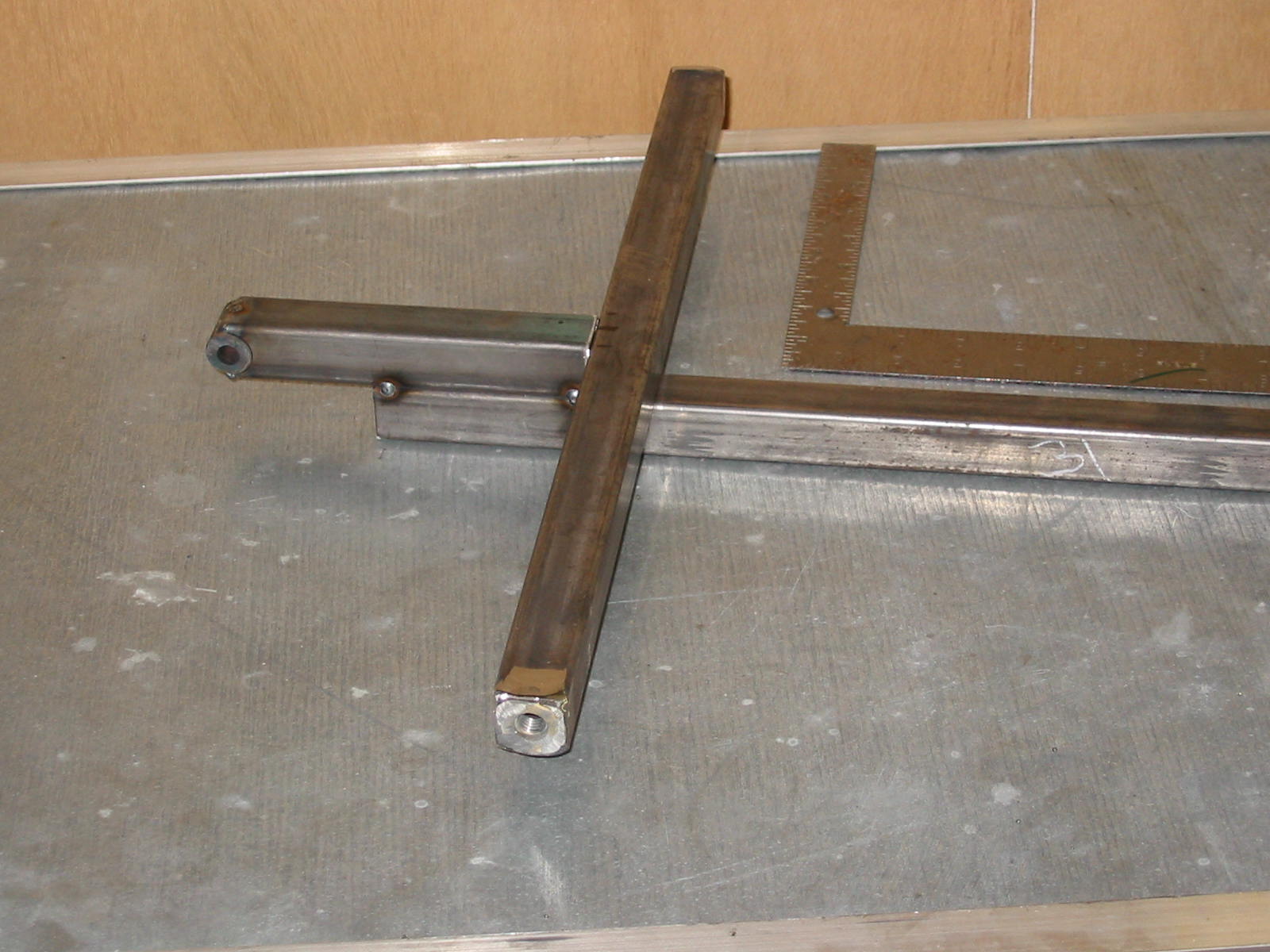

Here we center the rotating bar piece we made
earlier and butt it to the end of the 6-1/4" tube.
Square up these pieces and weld them together.

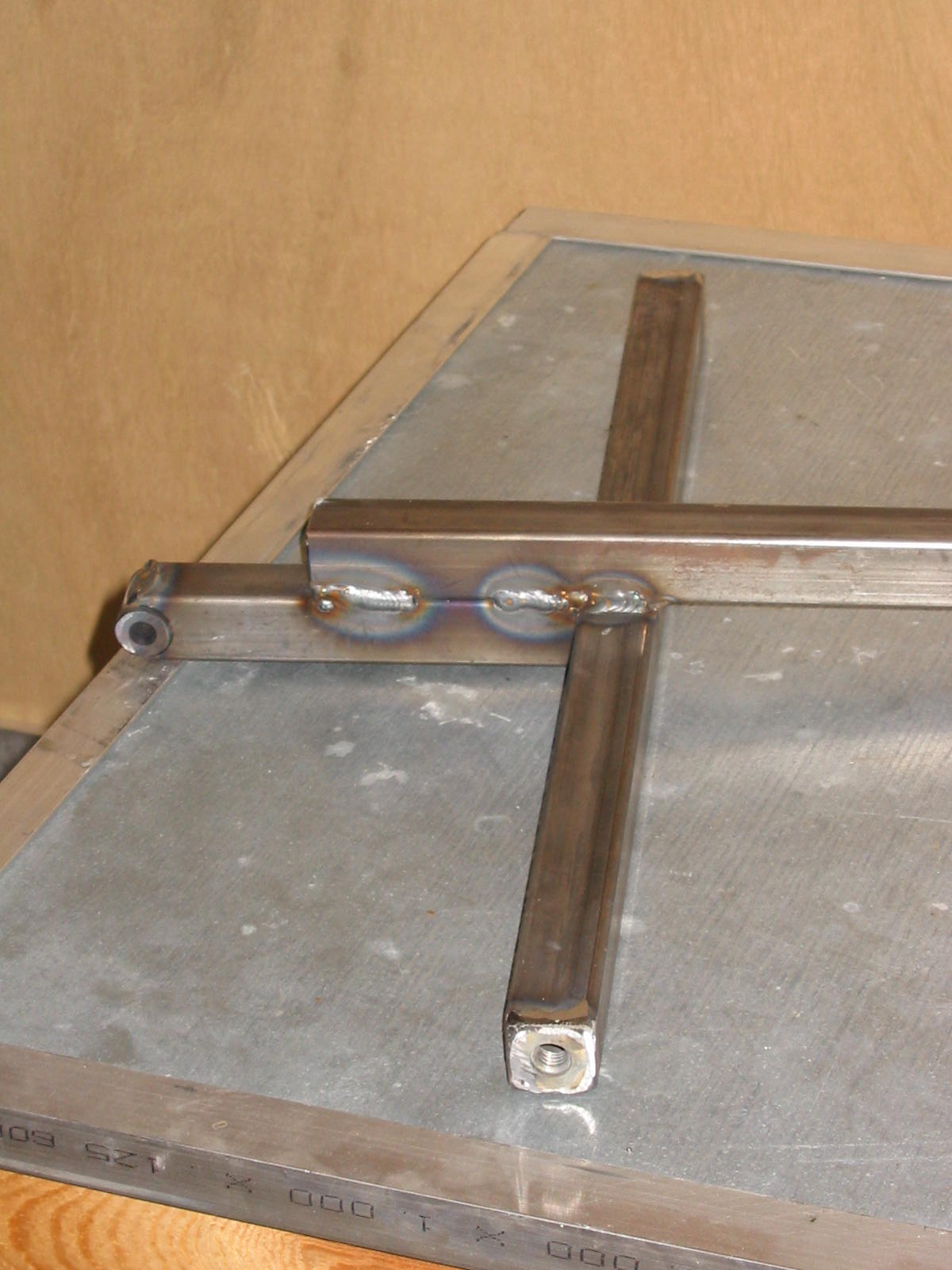

This is the right side up view when it gets assembled
later.
